Stainless Steel Deep Well Pump
Your Leading Stainless Steel Deep Well Pump Supplier
Zhejiang Lishiba Pump Co., Ltd. is a national high-tech enterprise integrating research and development, production, sales and service. The company's stainless steel deep well pump is divided into solar water pump for deep well, dc well pump, solar water well pump system, irrigation well pump. The product is widely used in industrial pressurization, domestic water supply, air conditioning water circulation, heating systems, fire protection systems, medical treatment, deep well water extraction, agricultural and forestry irrigation, aquaculture, as well as landscape, water arts, fountains and many other fields.
Why choose us
Rich Experience
"LISHIBA" brand was founded in 1999. The company specializes in the production and sales of deep well submersible motors, deep well submersible pumps, stainless steel fountain pumps, vertical multi-stage centrifugal pumps, and intelligent silent pumps.
Complete Qualifications
The company has obtained multiple certifications such as IS09001:2015, CCC, CE, and has been honored with titles such as "National High tech Enterprise", "Zhejiang Province Science and Technology Enterprise", and "Patent Demonstration Enterprise" .
Professional Team
We have a professional sales and technical team to provide comprehensive professional technical support and excellent marketing services to our customers.
Production Market
Our company's products are exported to more than 30 countries and regions including Europe, America, the Middle East, Africa, and Southeast Asia. Our domestic sales cover more than 30 provinces, cities, and autonomous regions across the country.
Types of Stainless Steel Deep Well Pump
Solar Water Well Pump System
A solar water pump system is essentially an electrical pump system in which the electricity is provided by one or several Photo Voltaic (PV) panels. A typical solar powered pumping system consists of a solar panel array that powers an electric motor, which in turn powers a bore or surface pump.

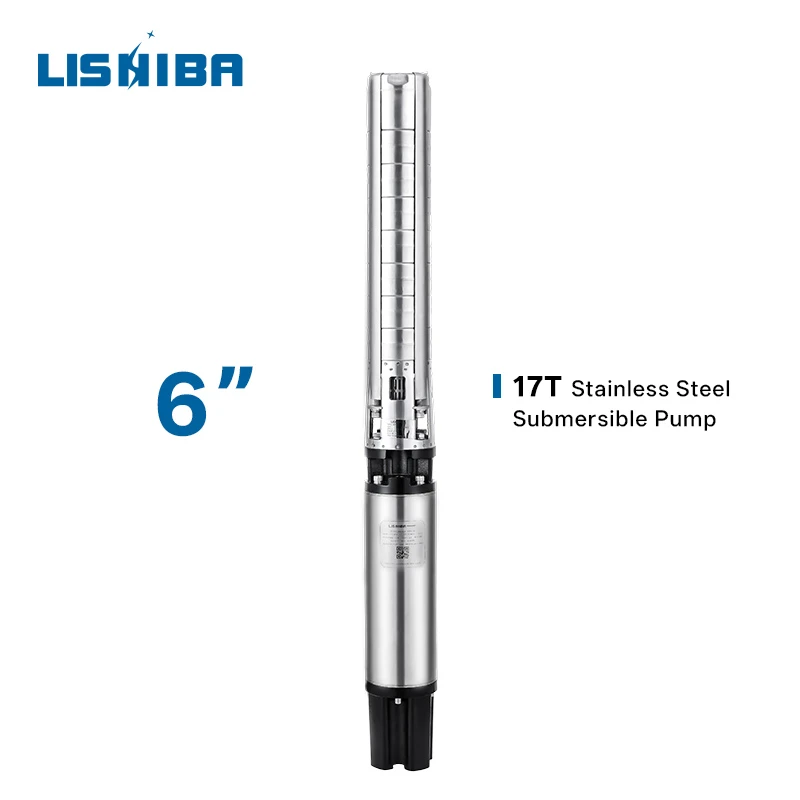

Solar Water Pump for Deep Well
It converts solar energy into electrical energy through solar panels. This energy is then transmitted to the motor of the deep well pump via a controller, which powers the motor and drives the impeller to rotate.
Specifications of Stainless Steel Deep Well Pump
|
Warranty |
1 Year |
Application |
Wastewater treatment |
|
Pressure |
High Pressure |
Voltage |
380v |
|
Customized support |
OEM, ODM |
Place of origin |
China |
|
Power source |
Electric |
Structure |
Multistage Pump |
|
Power |
0.75-9.2kw |
Model number |
100QJ |
|
Liquid |
Clean Water |
Motor |
Pure copper |
Features of Stainless Steel Deep Well Pump
- Heavy-duty stainless steel discharge head and motor bracket.
- Stainless steel shaft, shell, intake screen and cable shield for corrosion resistance and longer life.
- Stainless steel wear ring and Urethane floating eye seal for improved performance and efficiency.
- Glass-filled Nylon impeller stage assemblies provide incredible strength and durability.
- Ceramic shaft sleeve and rubber discharge bearing minimizes bearing wear and shaft misalignment without affecting pump efficiency.
- 3" NPT tapping in heavy-duty stainless steel discharge head.
- Fastener kit supplied for both 4" and 6" motors enabling 5-10 hp units to be mounted to either a 4" or 6" submersible motor.
- Maximum Operating Temperature: 120°F/49°C
- 200 ppm maximum allowable amount of sand
Installation Steps of Stainless Steel Deep Well Pump
Disconnect All Power
Easily the first step, all power should be turned off at the electrical panel and the pump's control box if applicable, and tested with a voltmeter to ensure no electricity is flowing to the installation location.
Ground the System
It's extremely important to properly ground the system to any metal plumbing, the control box (for 3-wire well pumps), and the motor frame using copper wire at least as thick as the other wires used to supply power to the pump motor. The owner's manual will include wiring charts to make sure the wire gauge (AWG) is correct, which will prevent the pump from overheating. Do not ground to a gas supply line.
Make the Wiring Connections
Splice the wires to the motor leads, matching the colors of the wire. In the case of 3-wire pumps, it will be red to red, yellow to yellow, and black to black. Only use copper wire. Make sure that any tape splicing that is done is spliced to be water-sealed. There are splice kits that can be purchased and make this step much easier than sourcing all materials separately.
Test the Pump Before Installing
To test the pump before installing, you'll need to connect it to the proper power supply. The frequency and voltage must match the motor nameplate frequency and voltage. Next, you'll need to properly attach the supply wire leads and attach the copper ground wire to the motor bracket. Remember to only use wires supplied by the manufacturer to ensure safety.
Mount the Control Box
After the control box is mounted, make sure all controls are set to off and no electricity is turned on anywhere, before attempting to install the pump. Then, connect the box to the motor leads.
Install the Pump
If you are using a standard air over water pressure tank, you need to drill two bleeder orifices about two feet apart so they will automatically charge the tank with air. If a pre-charged tank is being used or is replacing a traditional tank system, do not create new orifices, and remove old ones if necessary. To prevent dropping the pump, do not attempt to lower it into the well using the cord; instead, tie a safety rope long enough to reach the bottom of the well, permanently attached for later removal in the future.
Clear Out the Well
After the control box is set up and the motor leads have been connected, you'll need to attach a pipe elbow and a gate valve at the top of the piping temporarily in order to clean out the well. Set the gate valve on the discharge to be open one-third of the way. Then, start the pump and let the water run out until it is clear and free of dirt or sand. You can test this by filling up a clear cup with the water and looking for solids.
Attach to Water Tank
Now it is time to attach the pump system to the water tank. Submersible tanks can cause high-pressure backups and even blow up, so be sure to install a pressure release valve that can pass full pump flow.
Usage of Stainless Steel Deep Well Pump
Submersible pumps are used in various applications, including agriculture, irrigation, mining, and domestic water supply. They are ideal for transferring water from deep wells, lakes, and reservoirs.
Submersible pumps can pump water over long distances and at high pressures, making them ideal for irrigation and farm applications. They are also popular in the mining industry for dewatering purposes. Domestic submersible pumps, such as sump pumps, are used for water transfer and drainage applications.
